Benefits:

- foodstuff approved
- stable, transparent protective film – repels water

Typical Performance Characteristics

Product description

Shelf life :

Benefits:

1. 100% active ingredient
2. Highly effective
3. Dilutable with water
4. silicone-free- solvent free
5. Environmental friendly
6. NSF Registered according to H1category code
7. 2002/72/EU compliantDescription

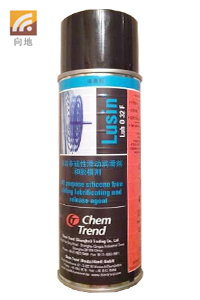

Lusin® Lub O 32 F can be used as lubricant or release agent in the production of products that have incidental food contact. Lusin® Lub O 32 F applied on a die e.g. blown film application reduces the build up during production. If Lusin® Lub O 32 F is applied to the outside surface of PET preforms it reduces scratches to the plastic surfaces occurring during transport and handling to an absolute minimum. Diluted with water Lusin® Lub O 32 F can be sprayed to warm or hot molds and work as a release agent. Application to cold molds is not recommended as the material contains in its diluted version water which will take a long time at room temperature to evaporate.

Lusin® Lub O 32 F is self emulsifying when mixed with water.

Typical Properties

Application

In terms of lubrication of the outside surface of PET preforms Lusin® Lub O 32 F should be diluted with deionised water in a ratio of 1 + 5. For the dilution the required amount of Lusin® Lub O 32 F should be added to deionised water and the mixture constantly

stirred using a stirrer. During this process the color of

For superior lubrication applications with incidental food contact Lusin® Lub O 32 F should not be diluted. The product is also suitable as release agent in the thermoplastic processing industry. The mould temperature should not exceed 200°C in terms of injection molding, for film applications the die temperature should not exceed 240°C.

In case of a mold application with the ready to use material the minimum temperature of the mold should be not below 80°C to ensure that water can evaporate.

Storage / Handling

For further information on storage, handling, hazards, etc. please refer to safety data sheet.

Shelf life: Approx. 24 months as 100% active ingredient. In case of a dilution with water on site max 2 month.

Packaging: 1l, 20 l, 200 l, truck load upon request. art. no. 905167

Lusin® Lub O 32 F turns from yellow into white.

The information contained in this document is given in good faith based on our current knowledge. It is only an indication and in no way binding, particularly as regards infringement of or prejudice to third party rights through the use of our products. Chem-Trend warrants only that it’s products will meet it’s sales specifications. This information must on no account be used as a substitute for necessary prior tests which alone can ensure that a product is suitable for a given use. Users are requested to check that they are in possession of the latest version of this document and Chem-Trend is at their disposal to supply any additional information.

Benefits:

1. high performance lubricating and assembly paste authorized in accordance with USDA-H1 – free from metals
2. excellent low-temperature behaviour
3. good corrosion protection
4. neutral towards alloyed steels – temperature limit 1200 °C
5. water pollution category 1

Typical Performance characteristics

Application

LUSIN® LUB UH1 96-402 is suitable for a variety of friction points in food processing machines which are subject to high loads.

As an assembly pastem, for bolts, pins, bushings, etc

As a lubricating paste, for guide rails, hinges, rollers, chains, etc

As a lubricating paste preventing fretting corrosion, for rolling and plain bearing seats, etc

Application notes

Before applying LUSIN® LUB UH1 96-402 it is important to clean and degrease the contact surfaces thoroughly. A thin layer of the paste is then applied by brush or synthetic sponge.

LUSIN® LUB UH1 96-402 spreads easily over the entire surface and thus prevents over-lubrication. We recommend carrying out compatibility tests before applying the paste to plastic materials.

Shelf life : 2 years Storage / Handling

For further information on storage, handling, hazards, etc. please refer to safety data sheet.

Packaging

spray 400 ml : 12 spray cans per box) Code N°: 151030

Paste : 80 g tube 750 cartridge

Code N°: 254050

Colour	White
Service temperature range, °C, approx.	-40 to 1200 >200°C dry lubrication
Density, DIN 51 757, at 20°C (g/cm3), approx.	1.58
Base oil viscosity, DIN 51 561, at 40°C, (mm2/s)	400
Drop point, DIN ISO 2176, °C	>250
Worked penetration at 25°C, DIN ISO 2137 –ASTM D 271) 0,1 mm	265-295
Corrosion behaviour, SKF Emcor test, DIN 51 802, 1 week, dist. water, rating	0/1
Pressfit, friction coefficient	0,10 no stick slip
Four-ball tester, welding load, DIN 51 350 pt 4, N	>2500

In the normal temperature range LUSIN® LUB UH1 96-402 provides good protection against corrosion and is very resistant to water. The friction coefficient in accordance with Tannert is approx. 0.1 at 300 N. This paste adheres very well to metal surfaces and prevents stick slip when assembling pressfit machine elements. The solid lubricant particles become effective if the components are subject to increased temperatures for an extended period. In a dry condition LUSIN® LUB UH1 96-402 is suitable for temperatures up to 1200 °C.Product description

While the technical information and suggestions for use contained herein are believed to be accurate and reliable, nothing stated in this bulletin is to be taken as a warranty either expressed or implied.

Further Information

Request information on our complete range of materials for this industry.

Benefits:

- Excellent release and antifriction effect – Efficient prevention of filament breaking

Product description

Lusin® Alro O 302 S is a release agent and lubricant for spray application to spinnerette plates.

It reduces contamination on the plates and prevents breaking of the filament and the ensuing down time on the plant.

Lusin® Alro O 302S can be used in the production of filaments for nylon, polyester, polypropylene and other synthetic materials.

Special properties:

1. silicone based for continuous operating temperature up to 300°C
2. Excellent release and lubrication effect.
3. good adhesion to metallic surfaces.Instructions for use
4. shake spray can before use.
5. spray spinnerette plate lightly from about 30 cm distance

Shelf life: 2 years Storage / Handling

For further information on storage, handling, hazards, etc. please refer to safety data sheet.

Packaging

spray can 400 ml : (12 cans/carton)

Code No. 001025 .1

Further Information

Request information on our complete range of materials for this industry.

Benefits:

1. suitable for use in foodstuff applications – for mould temperatures up to 150 °C
2. easy demould
3. wide range of applications
4. can also be used as a lubricant – multiple demould

Product description

The release agent is based on colourless and odorless non-reactive silicone oils (dimethyl siloxanes).

Special properties:

1. solvent free
2. good release and slip effect
3. long cycle times (multiple demould) – approved for foodstuff applications

Shelf life: 2 years

Storage / Handling

For further information on storage, handling, hazards, etc. please refer to safety data sheet.

Packaging, spray can 400 ml ( 12 cans/carton) Code No.: 001070

The test certificate of the German Material Research and Test Institute (BAM) for an external release agent for the production of plastic articles for foodstuff use is available.

Further Information

Request information on our complete range of materials for this industry.
